| الاسم التجاري: | WONDERY |
| رقم النموذج: | WDL-RGQ-500 |
| مو: | 1Set |
| السعر: | TO BE NEGOTIATED |
| موعد التسليم: | 60 يوم عمل |
| شروط الدفع: | L/C ، D/P ، T/T ، Western Union |

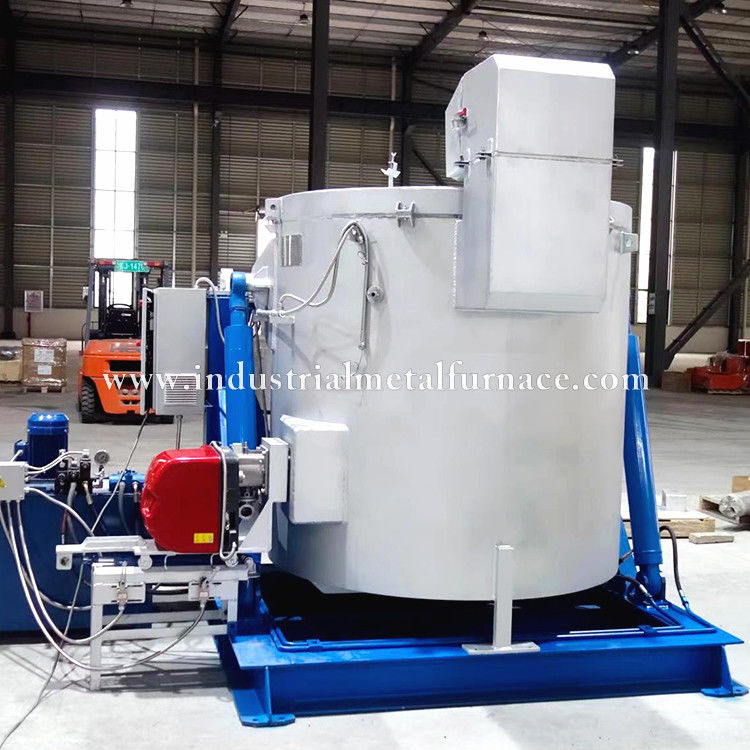

Efficient 500kg Gas-Fired Tilting Aluminum Melting Furnace - Model WDL-RGQ-500
Our WDL-RGQ-500 Gas Fired Tilting Aluminum Melting Furnace delivers industrial-grade performance for melting aluminum and other low-melting-point alloys. Engineered for precision and reliability, it achieves a rated temperature of 850°C with superior energy efficiency and operational safety.
| Parameter | Specification |
|---|---|
| Crucible Capacity | 500 kg |
| Melting Rate | ~250 kg/hour (continuous operation) |
| Fuel Type | Natural Gas (8400 Kcal/Nm³) |
| Fuel Consumption | 70-75 Nm³ per ton of aluminum |
| Rated Temperature | 850°C |
| Wall Temperature | < Ambient +50°C |
| Burner Type | Riello (Auto Ignition & Flame Detection) |
| Crucible Brand | Golden Elephant (6+ months service life) |
| Refractory Lining | High-strength castable (5+ years life) |
Riello Burner System: Fully automated with precision temperature control, auto-ignition, flame monitoring, and safety shut-off.
Hydraulic Tilting: Safe, smooth, and controlled pouring of molten metal.
Robust Construction: Furnace shell built with steel plates and sectional steel; lining made of high-compression (140MPa) refractory casting.
Safety Systems: Emergency outlet and leak alarm for crucible failure protection.
Thermal Efficiency: Multi-layer insulation with silicate aluminum fiber and lightweight bricks minimizes heat loss.
This furnace is an excellent solution for operations seeking to improve productivity and reduce melting costs with reliable, energy-efficient gas technology.
