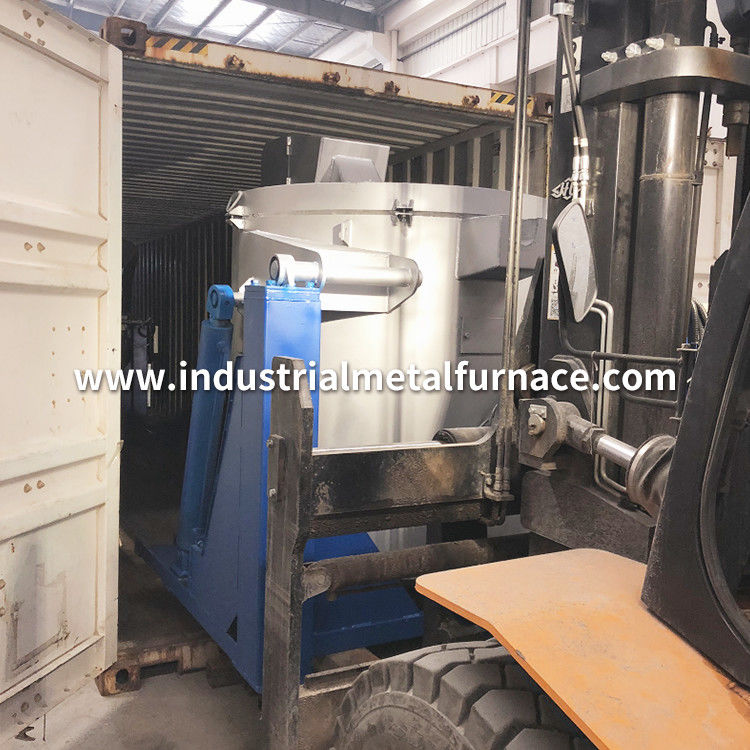

WDL-RGQ-1000 Diesel Fired Hydraulic Tilting Aluminum Melting Furnace - 1000kg Capacity, 500kg/hr High Efficiency
WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD. introduces the WDL-RGQ-1000, a high-capacity diesel fired aluminum melting furnace designed for demanding industrial applications. Engineered with a hydraulic tilting system, this crucible melting furnace ensures safe, efficient, and flexible operation in aluminum alloy melting and insulation processes. Ideal for foundries, recycling plants, and manufacturing facilities, it combines advanced technology with reliable performance for seamless metal processing.
Key Features & Benefits:
High Capacity & Productivity: Features a 1000kg crucible capacity with a melting rate of 500kg per hour under rated conditions, enabling large-scale batch operations.
Precise Temperature Control: Operates at a rated temperature of 850℃ with an accuracy of ±15℃, ensuring consistent aluminum liquid quality and optimal melting results.
Fuel Efficiency: Utilizes diesel fuel with a consumption of approximately 70kg per ton of aluminum, offering cost-effective operation without compromising performance.
Robust Construction & Safety: Built with a welded steel shell, a durable one-time forming castable melting pool, and a reliable hydraulic tilting mechanism for safe and controlled pouring.
Automated Combustion System: Equipped with a premium Riello oil burner from Italy, featuring automatic ignition, flame monitoring, and intelligent temperature-based operation for minimal manual intervention.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | WDL-RGQ-1000 |
| Crucible Capacity | 1000kg |
| Melting Capacity | 500 kg/hr |
| Fuel Type | Diesel |
| Rated Working Temperature | 850℃ |
| Temperature Control Accuracy | ±15℃ |
| Furnace Tilting System | Hydraulic Type |
| Burner Brand | Riello (Italy) |
| Control System | Fully Automatic with Temperature Controller |
This industrial melting furnace is supplied as a complete set, including the furnace body, Riello burner, electrical control system, automatic temperature controller, graphite crucible, hydraulic system, and operation manual. Designed for long service life and easy maintenance, it is an ideal solution for continuous and high-volume production environments.
